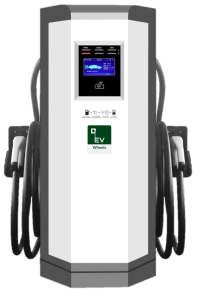

The 60-240kW high protection DC Charger

The 60-240kW high protection DC Charger is specially designed to deliver high protection and reliability while being fully compatible with global EV charging standards. Its all-in-one design and IP55 protection rating make it suitable for various harsh environments. Featuring fully potted modules achieving 96% efficiency, the charger has a small footprint to minimize space occupation in compact parking spots. It also offers a more user-friendly connector management design option.

Product Features

  • Fully Potted Modules: Strong Protection & High Efficiency

    96% conversion efficiency. Fully potted tech resists moisture, dust, corrosion; stable operation at -30°C to +50°C without derating. Compliant with IEC 61851-23:2023.

  • 300-1000V Wide Voltage & Constant Power

    Covers 400V/800V platforms, no low-voltage current drop. Supports CCS2/GBT, CE/CB certified. Universal vehicle compatibility

  • Smart Management & Silent Operation

    Remote O&M via 4G/Ethernet (OCPP1.6 and OCPP2.0); supports APP/RFID/QR code payments.

  • Compact & User-Friendly

    All-in-one design, high power density, space-saving. Cable management system for easy operation.

  • IP55 Rating + Efficient Cooling

    IP55 protection with optimized air ducts and dust filters for longer lifespan. Smart fans ensure low noise.

Product Specifications

Basic Information
Model EVW-60C EVW-80C EVW-120C EVW-160C EVW-180C EVW-240C
Rated power 60kW 80kW 120kW 160kW 180kW 240kW
Dimensions (WxDxH) 870 x 460 x 1600 mm 870 x 460 x 1650 mm 910 x 500 x 1750 mm
Weight (KG) ≤220KG ≤270KG ≤340KG
Charging outlet CCS2 + CCS2 | CCS2 + GBT
Cable Length 5 meter
HMI 7-inch color touch screen
Energy meter DC Meter
CMS (Cable Management System) Optional
Installation Ground mounted
Billing
Billing Mode  RFID | Credit Card | Scan QR code | Auto Charge
Input
Voltage 400VAC ±10%, 3P + N + PE
Frequency 45Hz – 65Hz
Current 91A 121A 182A 243A 273A 364A
Power factor ≥0.99
ITHD ≤5%
Output
Voltage 200-1000Vdc
Current CCS2 250A rating
GB/T 250A rating		 CCS2  300A rating
GB/T  250A rating
Power CCS2 60kW max
GB/T 60kW max		 CCS2 80kW max
GB/T 80kW max		 CCS2 120kW max
GB/T 120kW max		 CCS2 160kW max
GB/T 160kW max		 CCS2 180kW max
GB/T 180kW max		 CCS2 240kW max
GB/T 240kW max
Max efficiency ＞96%
Charging way Meantime
Environment
Operating temperature -30 ~ +50°C
Humidity 5% ~ 95% RH, non-condensing
Altitude ≤2000m no derating required; >2000m, the working temperature decreases by 1 ° C for every 100m rise
Protection Grade IP55
Application Site Indoor/Outdoor
Cooling method Fan cooling
Standards & Certifications
EVSE CCS2: PLC (DIN70121: 2014-12 / ISO15118)
GB/T: CAN (GB / T27930)
Back-end protocol Ethernet, 4G, OCPP1.6J / OCPP 2.0
Certification CE & CB
